o   Dr. Ken Rykbost discusses Klamath River hydrology.

In route on the tour bus to Lost River, Dr Ken Rykbost presented his hydrology report. Since the sound on the Humboldt tour bus was challenging to record, we took the information from a previous presentation.  He explained how the Klamath Project consists of only 3.4% of the water at the mouth of the Klamath River.  His research of the Hardy Flow study discovered that Dr Hardy used a time period of the highest precipitation and river flows in recorded history to develop demands on Klamath Project's stored irrigation water.

For full Power Point, go HERE.

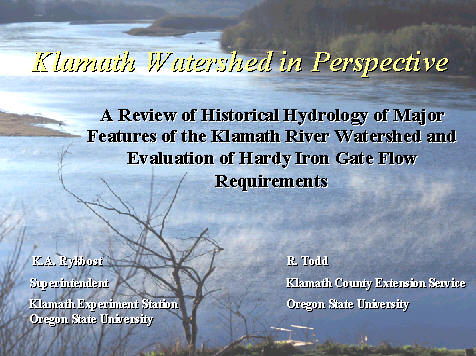

Dr. Ken Rykbost, Superintendent, OSU-Klamath County Experiment Station
Audio Click Here:  Dr. Ken Rykbost introduces himself.
For audio, go HERE for free download of Real One Player.  Look carefully to find the FREE download.)

Introduction Transcript, followed by presentation of power point in text version:
"I'm (Dr.) Ken Rykbost. I'm currently superintendent of the Klamath Experiment Station, part of Oregon State University agricultural experiment station system, and I hold a title of  Professor in Department of Crop and Soil Science at Oregon State University.

I had a Bachelor's and a Master's degree from Cornell University in agronomy, which is  the study of crops and soils,  and I completed a Ph. D. in Department of Soil Science at Oregon State University in 1973, with a minor in civil engineering, particularly in relation to the hydrology and water quality issues, and those kinds of things.

I've been involved for the last 30 years with agronomic research in the general area of potato production, but I've also been somewhat involved with water issues from several standpoints.  I was involved with a Long Island, N.Y. groundwater study that was looking at potential sources of nitrate contamination in the groundwater.  I've been involved with irrigation management practices, water conservation through irrigation systems.   And most recently I've at least partially involved some of my time in the study of water quality issues in upper Klamath Lake, and hydrology issues in the Klamath watershed.  So I have some background and somewhat expertise in the issues of water."

Objectives of the Study

*Gain a better understanding of the total Klamath watershed and its hydrologic history

*Develop multi-year hydrographs at key locations in the watershed to look for long-term trends in flows of major tributaries and the Upper Basin

*Examine Klamath Project long-term operations to determine the probability of achieving flow requirements recommended in Hardy Reports


Data Sources and Limitations

*Streamflow data are from Bureau of Reclamation and U.S. Geological Survey records available on the Internet

*Years of record vary for various subbasins in the watershed

*Minimum Instream Flows from Hardy studies are taken directly from Hardy Phase I Final Report and Hardy Phase II Draft Report

*Klamath Project water diversions reported include agricultural and refuge use as calculated by Jim Bryant at the Bureau of Reclamation

*Data are summarized over years to mask the inherent and large variability between water year types due to precipitation fluctuations

Selective Use of Data

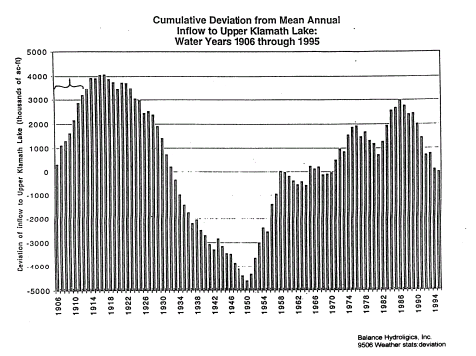

*Major studies and reports shaping public policy have used a non-typical hydrologic period as the basis for historical flows *Reports by Balance Hydrologics, Inc. and Hardy Phase 1 use flows at Keno, OR from 1905-1912 for estimating pre-Klamath Project Upper Basin flows
*Balance Hydrologics, Inc. used a 4% correction to account for 1905-1912 being an above average precipitation period

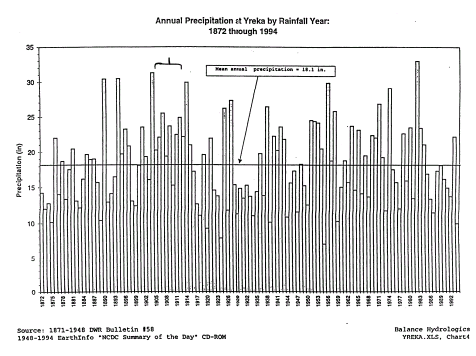

*Compared with long term records, 1905-1912 experienced precipitation 21% above normal in Yreka, CA and 4% above normal in Klamath Falls
*The Bureau of Reclamation estimated inflow to UKL at 34% above normal in 1905-1912

Changes in Upper Basin Hydrology

*The Lost River Slough was dammed in 1890 to stop drainage of excess flows from Klamath River to Tulelake
*Construction of a railroad through Lower Klamath Lake between 1907-1911 prevented overflows from Klamath River to Lower Klamath Lake, reducing large evaporation losses
*Both changes resulted in increased flows at Keno compared with pre-settlement hydrology

*Pre-settlement, the Lost River system was a closed basin with no access to Klamath River
*Project features now allow diversion from the Gerber, Clear Lake, Lost River system to Klamath River
*Direct access to Klamath River is available from Tulelake through Lower Klamath Refuge and the Straits Drain

Annual precipitation in the Klamath Basin
*Long-term NOAA precipitation records are available for Klamath Falls, Crater Lake, and Keno, Oregon, and Yreka and Klamath CA.

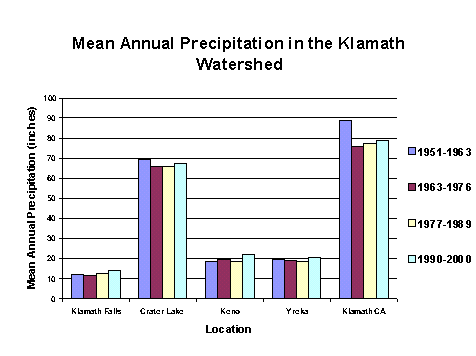

*Total annual precipitation is charted for each location for 1951 - 2000.
*Average precipitation for multi-year periods that will be used for streamflow data presentation are quite similar at each location.

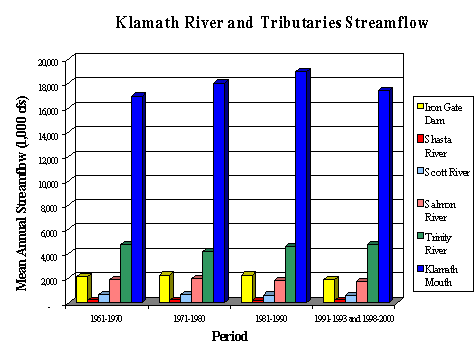

Streamflows for Klamath River Tributaries

*Iron Gate Dam records begin in 1960
*Data for the Klamath Mouth is not available for 1994-1997

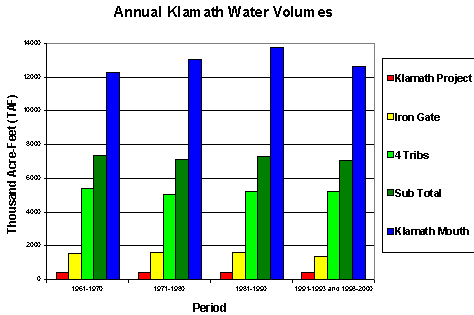

*The major tributaries contribute about 54% of flow at the mouth for the period of record.
*Remaining flows are from smaller tributaries and include 360 TAF (thousand acre-feet) of accretions from Keno to Iron Gate Dam


Trinity River Annual Hydrograph

*Shape of hydrograph is very similar to Klamath mouth hydrograph
*Significant change in April through June for periods before and after Trinity Diversion
*Diversion was about 1.1 MAF (million acre-feet) in 1964-1986 and 0.73 MAF from 1987-2000 (CDWR)

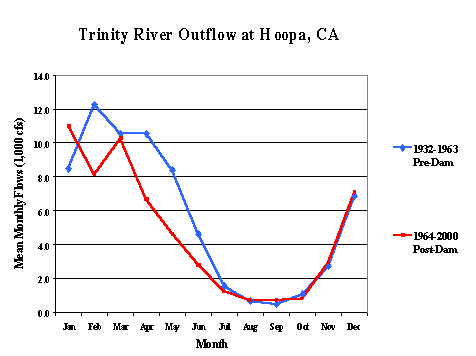

Trinity Hydrograph Pre- and Post- Diversion

*Important to note that diversion occurs high in the Trinity Basin and only affects about 20% of the total Trinity system measured at Hoopa, CA
*Hydrograph suggests diversion occurs between March and July
*February dip in post-diversion hydrograph is related to filling of Trinity reservoirs
*August through December graphs are identical


Klamath Mouth Hydrograph pre- and post-Trinity River Dams

*Main difference coincides with reduced post-dam spring Trinity River hydrograph
*August and September flows nearly identical pre- and post-Trinity dam
*Period of apparent shortage coincides with request for increased flows for smolt out-migration

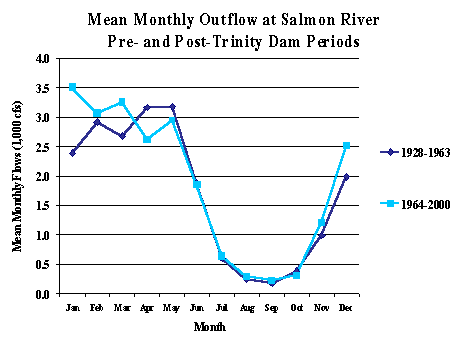

Salmon River Hydrographs

*No out of stream diversions from Salmon River, but seasonal hydrograph coincides with Trinity’s

*Hydrographs show similar trends for varied flows from December through April, but consistent low flows in August and September

*Pre- and post- Trinity Diversion periods have nearly identical hydrographs from June through October

Scott River Hydrographs

*Same seasonal hydrograph trends as observed for Trinity and Salmon Rivers

*Diversions for agriculture are estimated at 70 TAF or about 15 % of Scott River watershed yield (CDWR)

*Study by Drake, Tate, and Carlson reported precipitation accounted for 75-80% of fall flow variability


Shasta River Hydrographs

*More uniform hydrographs across years than other tributaries

*CDWR estimates agricultural diversion is about 100 TAF annually

*Diversion represents about 40 % of Shasta yield and 25 % of Klamath Project diversion from UKL and Klamath River

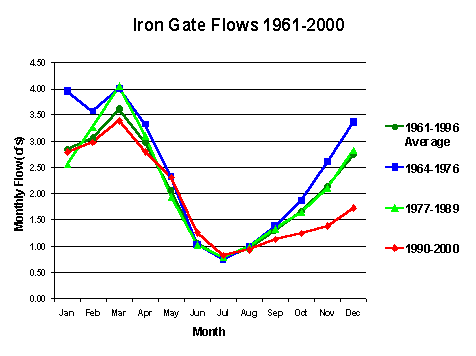

Iron Gate Dam Hydrographs

*Annual discharge declined from 1.75 MAF in 1964-76 to 1.38 MAF in 1990-2000
*No significant increase in Klamath Project agriculture diversions from 1960s to present
*Mean flows from May through August were similar in all periods

Meeting Hardy Minimum Instream Flows at Iron Gate Dam

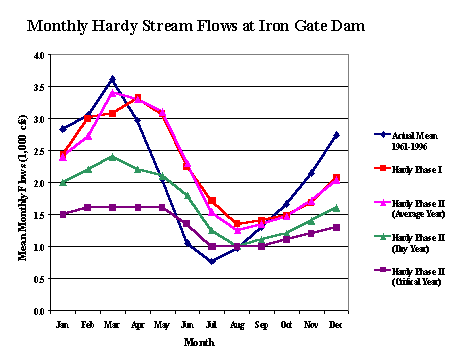

*Hardy Phase I recommended an "average" year flow regime requiring annual discharge at Iron Gate Dam of 1.62 MAF
*Average 1961-1997 Iron Gate flow is 1.53 MAF
*Total annual flows at Iron Gate were less than Hardy Phase I "average year" flows in 25 of the 42 years from 1961-2002

Meeting Hardy Minimum Instream Flows at Iron Gate Dam

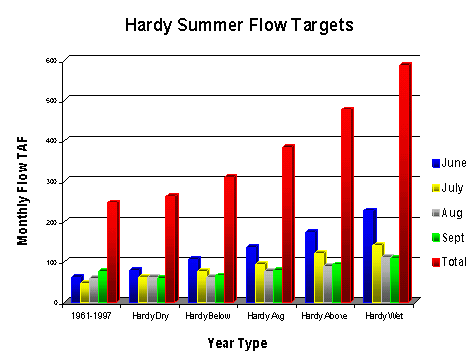

Revised Hardy Phase II flow regimes set 5 hydrologic year-types based on projected April-September inflow to UKL:

*Critical: Inflow < 286.8 TAF
*Dry: Inflow 286.8 – 458.3 TAF
*Average: Inflow 458.4 – 568.5 TAF
*Above Avg: Inflow 568.6 – 785.2 TAF
*Wet: Inflow >785.2 TAF

Can Hardy Phase II Targets for Iron Gate Dam be Met?

*No consideration for minimum lake elevations, overflows in spill mode, or timing of flows to meet summer targets in the analysis.

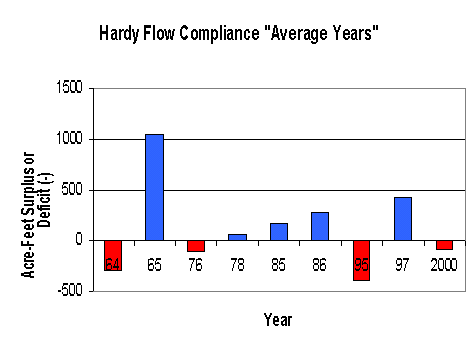

*Evaluation only considers total annual Iron Gate flows and whether individual years achieved those flows based on year type targets
*Results are charted by year type for 1961-2002

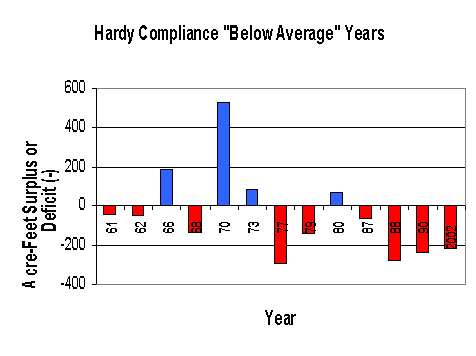

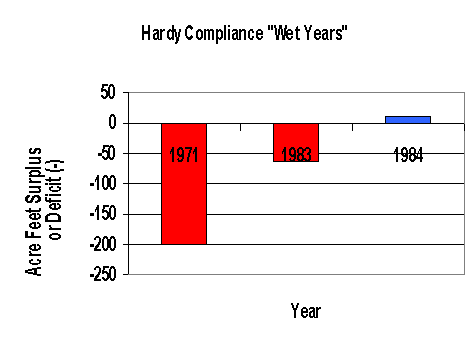

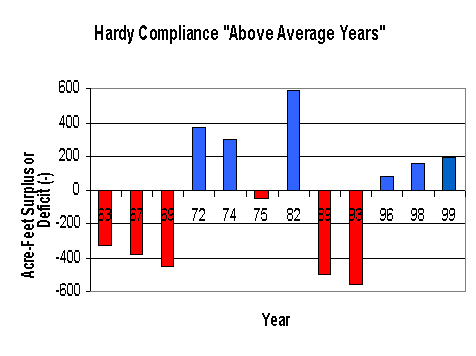

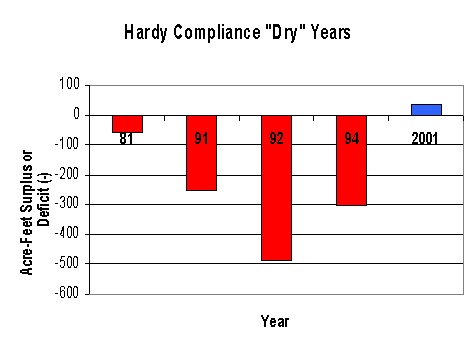

*Charts show surplus or deficit (-) by year type


Williamson River Flows at Modoc Point Road

*Williamson River accounts for about 46 % of inflow to UKL according to several studies

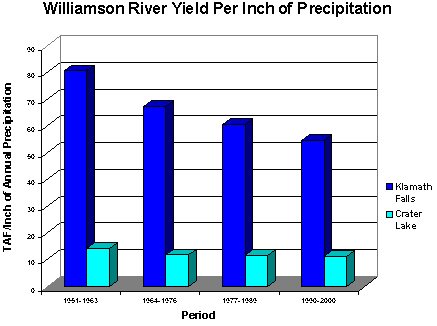

*Williamson River watershed yield per inch of precipitation at Klamath Falls or Crater Lake has declined significantly over the past 50 years

*Changes in the upper Williamson, Sycan, and Sprague Rivers seem apparent


Klamath Watershed in Perspective Summary

*The Upper Basin above Iron Gate Dam, including Klamath Project diversions, accounts for about 15 % of annual flow at the mouth of Klamath River over past 40 years

*Klamath Project agricultural water use has not changed significantly in the past half century

*High summer flows requested for environmental use are only potentially available because of storage designated for agricultural irrigation


Klamath Watershed in Perspective Summary

*All tributaries in the Klamath system produce hydrographs with widely varying winter and spring flows but consistently low summer flows

*Trinity diversions represent about 20 % of river yield and appear to mainly affect the spring hydrograph for Trinity and mouth of Klamath

*Watershed yield above UKL appears to have declined in recent decades


Klamath Watershed in Perspective Summary

*Hardy flow regimes requested for summer months could not be met in a significant number of years even if Klamath Project received no diversions from UKL or Klamath River

*Basing historical flows on 1905-1912 results in unachievable expectations


Klamath Watershed in Perspective Summary

*The 1905-1912 period used to model flows is the only period since 1905 when streamflow records are unavailable in all other reaches of the watershed

*This fact precludes the ability to compare the yield at Keno, OR with flows in the Lower Klamath River Basin or other tributaries
